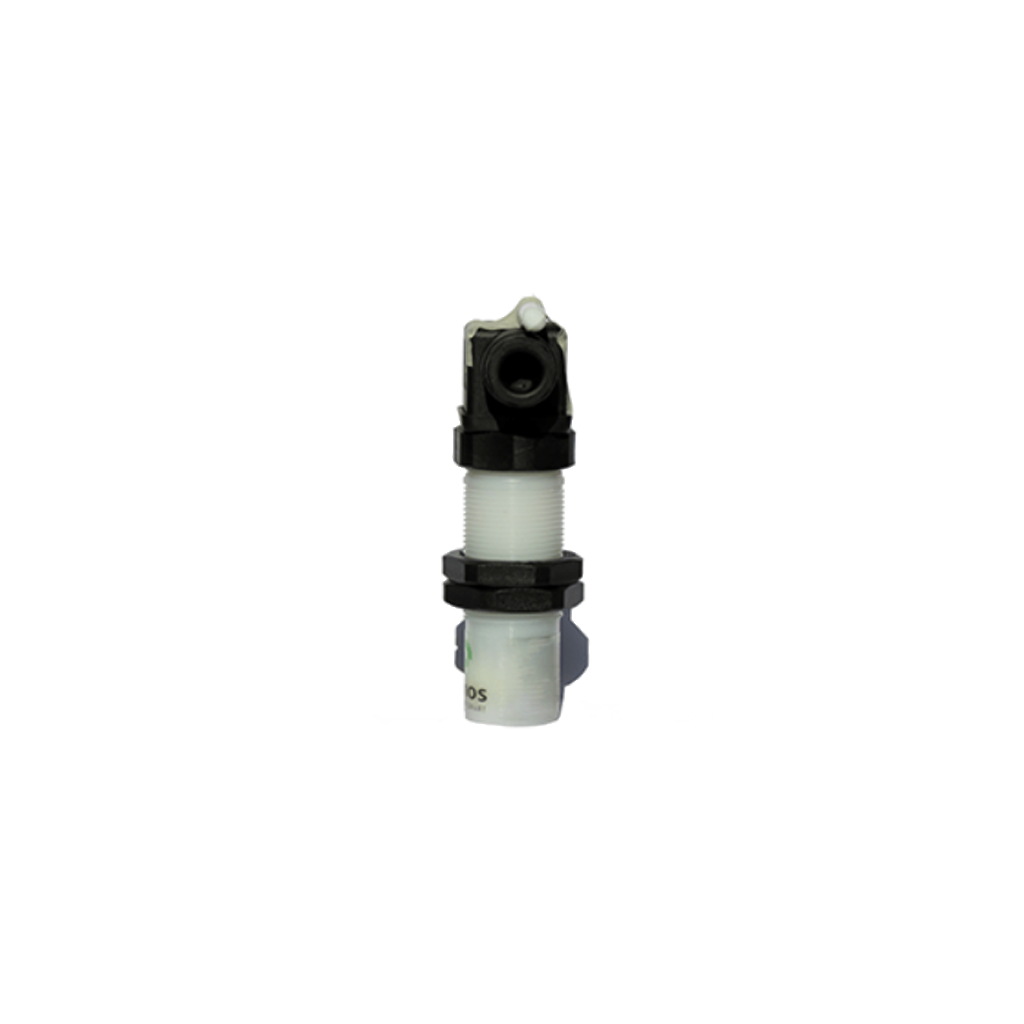

Seam Detector (UB Series)

The UB series (UB-30 and UB-40) are highly sensitive magnetic sensors designed to detect fabric ends in dyeing machines. By identifying a magnet attached to the seam, the sensor supports accurate lap-time tracking even at high speeds and high temperatures.

Technical Specifications

• Reception Range: UB-30 = 30 cm, UB-40 = 40 cm.
• Operating Voltage: 24V DC (18 – 30V DC range).
• Temperature Tolerance: Operating 0 – 90 °C; signal detection up to 150 °C.
• Status Indicators: Green LED for power and Red LED for signal detection.
• Protection: Temperature and electrical noise compensation.
• Use Case: Seam detection for repeatable dyeing machine operation.
