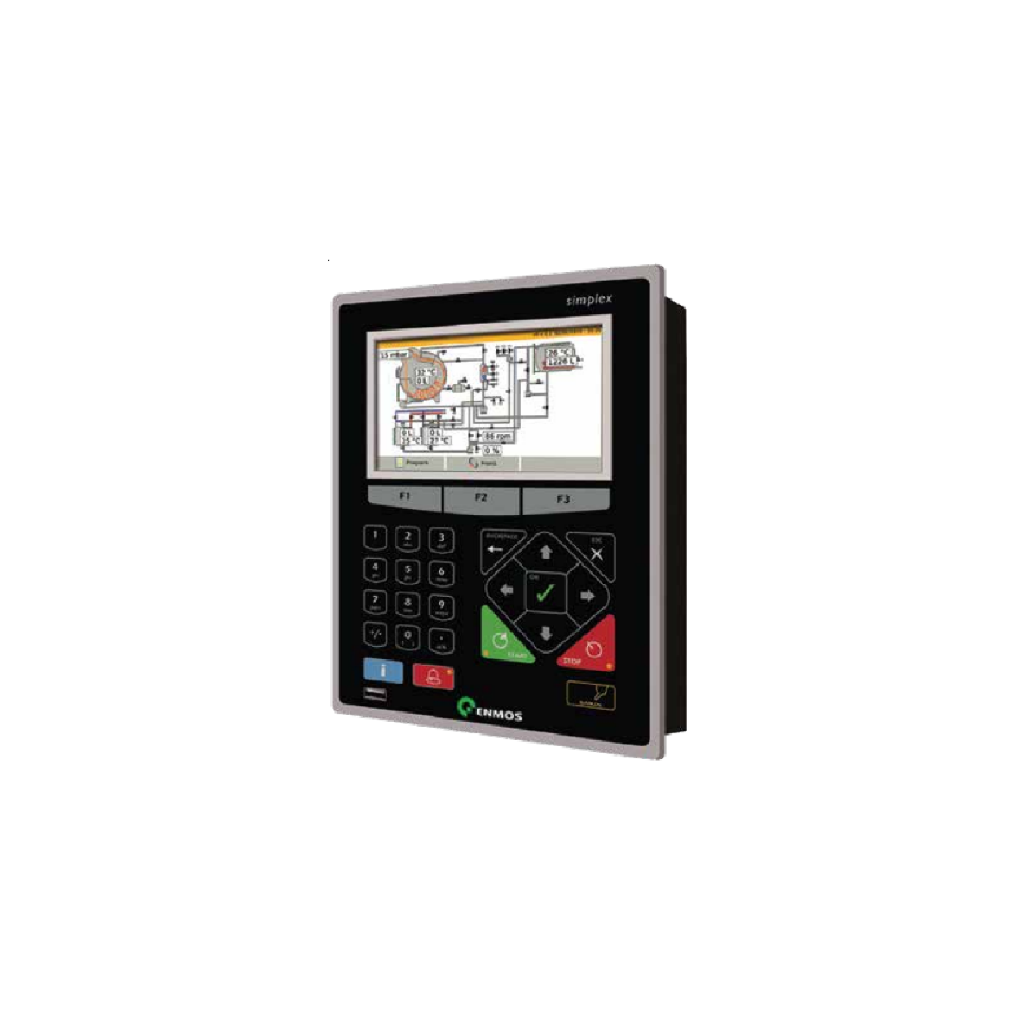

S520

The Simplex 520 is a high-performance, fully automatic dyeing computer designed for precise control of fabric, yarn, and sample dyeing machines. It uses a modular two-part structure for flexible installation and high-speed parallel operations.

Technical Specifications

• Display: Color TFT (800 x 480 resolution) with 256,000 colors and multi-language icon support.
• Memory & Storage: 128 MB RAM, 256 MB Flash; supports SD/MMC cards up to 2 GB.
• Connectivity: 10/100 Mbps Ethernet and USB 2.0 Host.
• Operating Power: 24V DC with a maximum consumption of 15W.
• Environmental Limits: 0–60 °C; 10–90% non-condensing humidity.
• Integration: Compatible with Enmos Focus software and external sensors for pH and temperature monitoring.
