Enmos

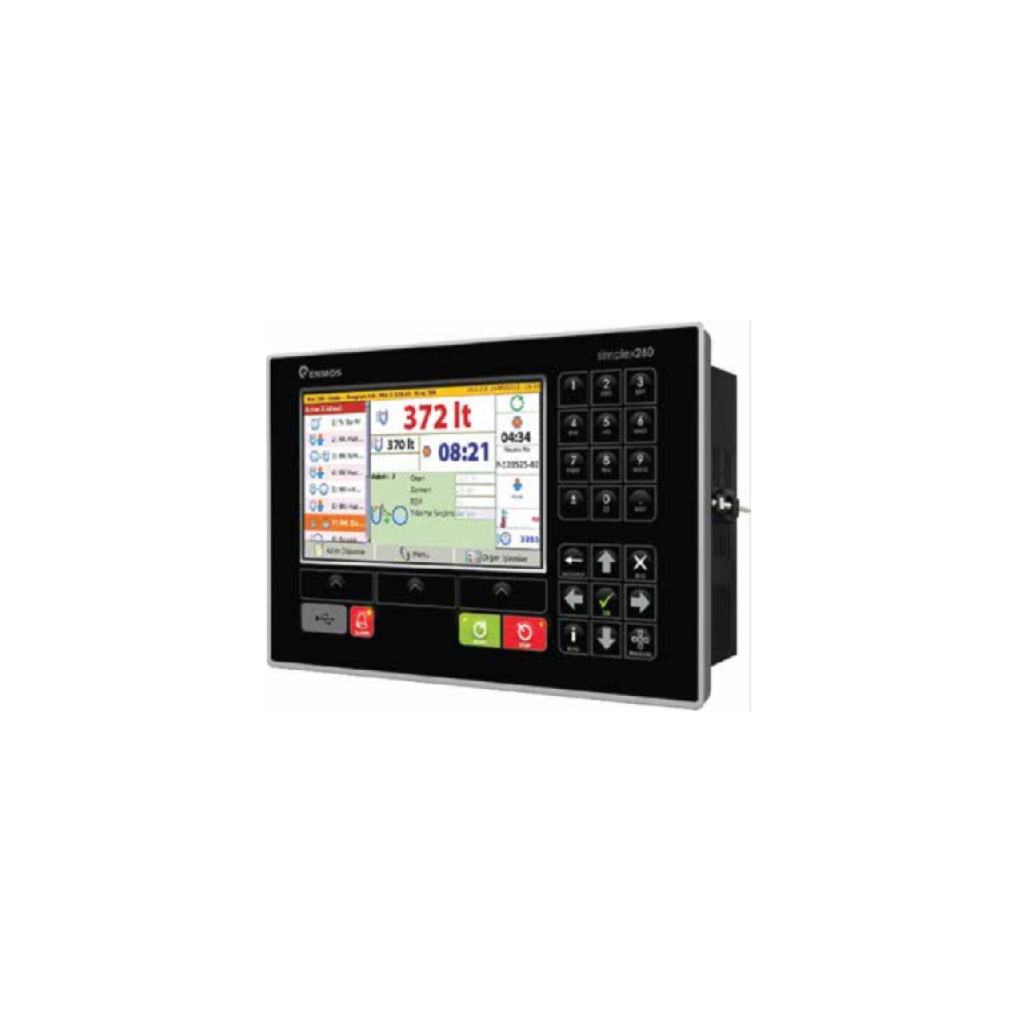

S260

The Simplex S260 is a fully automatic dyeing computer used to control Soft Overflow, Jet, Yarn, and Drum dyeing machines. It uses a modular two-part structure to allow flexible installation and process control.

Technical Specifications

Display: 7-inch Color TFT (800 x 480 resolution) with multi-language support.
Processor & Memory: 128 MB RAM, 256 MB Flash (Expandable to 2GB via SD Card).
Inputs/Outputs: Analog (PT100, 0/4-20mA) and Digital (12-24V DC/AC).
Communication: RS485, RS232, Ethernet, and USB 2.0 Host.
Operating Power: 24V DC, Max 30W consumption.
Use Case: Soft Overflow, Jet, Yarn, and Drum dyeing machines.
