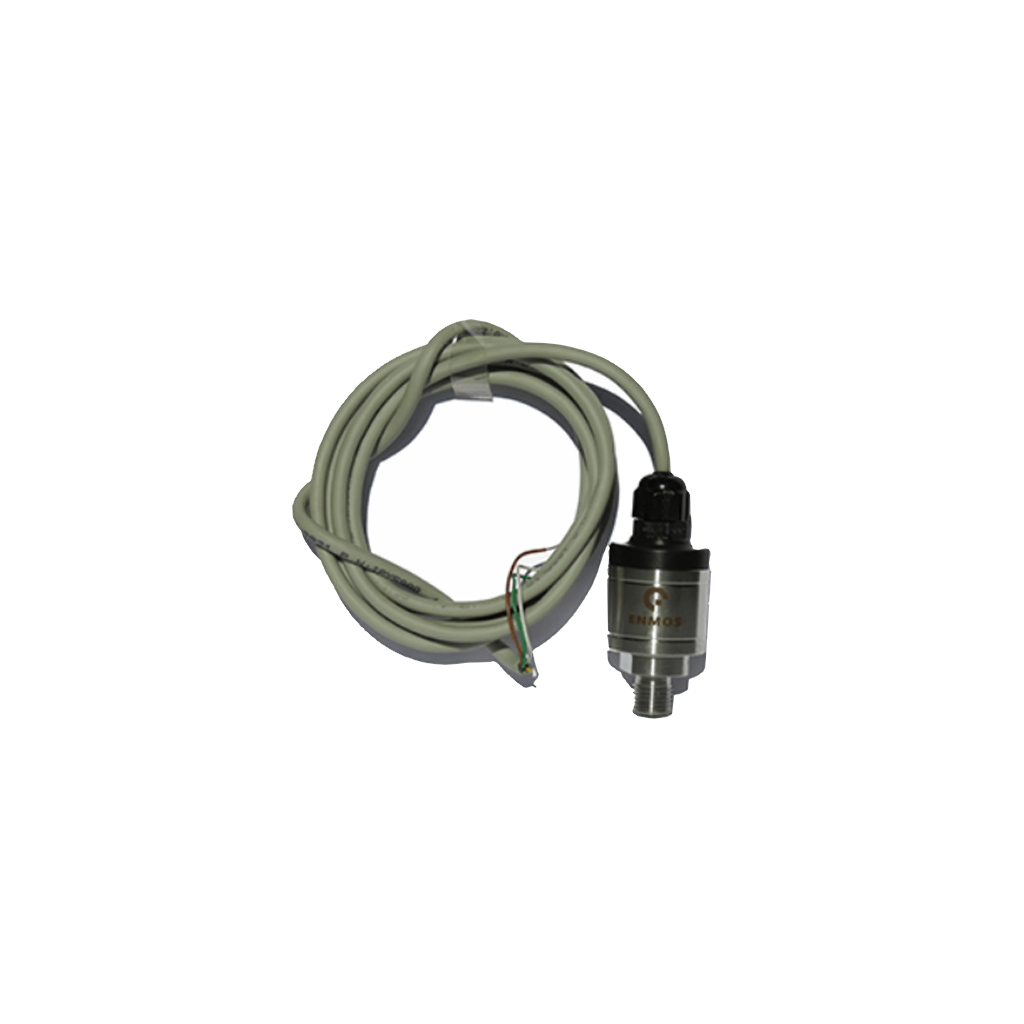

BS-100

The BS-100 is part of a new generation of level sensors that convert fluid pressure into a 4–20 mA signal. It is designed for tank mounting and uses air isolation to protect the sensor from direct contact with corrosive fluids.

Technical Specifications

• Measurement Range: 0 – 100 mBar.
• Operating Voltage: 24V DC (18 – 30V DC range).
• Accuracy / Linearity: < 1% error.
• Mounting: 1/4" BSP thread for easy tank installation.
• Environmental: Operating temperature of 0 – 60 °C; 10 – 90% non-condensing humidity.
• Connection: 2-wire connection with a maximum load of 500 Ohm.
